型材折彎機各部件的性能和作用

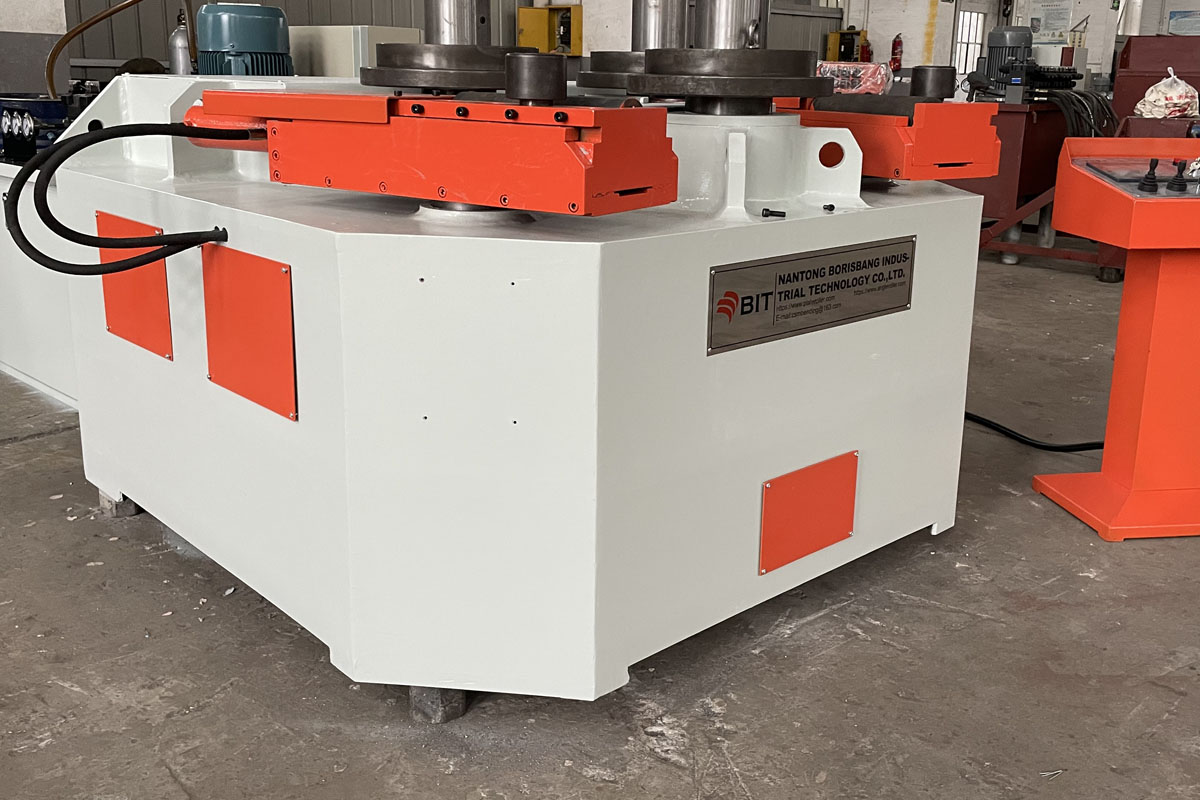

型材折彎機是用于彎曲各種型材的機械設備。它主要由機身工作臺、模具、液壓系統、控制系統等幾部分組成。通過調節折彎機構的參數，可以實現不同規格型材的折彎加工。
Profile bending machine is a mechanical equipment used to bend various profiles. It is mainly composed of several parts such as fuselage workbench, mold, hydraulic system, control system, etc. By adjusting the parameters of the bending mechanism, the bending processing of profiles of different specifications can be achieved.
型材折彎機各部件的性能和作用
機身工作臺
- 機身工作臺是型材折彎機的主要結構，應具有足夠的強度和剛度，以確保設備在運行過程中的穩定性。
- 定期檢查機身連接部位，確保螺栓、螺母等緊固件可靠緊固，防止松動影響設備的精度和安全性。
折彎模具
- 折彎模具是型材折彎機的關鍵部件，其質量和精度直接影響型材折彎的質量。
- 根據不同的型材規格和折彎要求，選擇合適的折彎模具。模具的尺寸和形狀應與型材匹配，以確保折彎效果。
- 安裝折彎模具時，應確保模具安裝位置準確、緊固可靠。同時，還要注意模具間隙的調整，避免型材在折彎過程中出現不均勻變形等問題。
- 定期檢查和維護折彎模具，例如清理模具表面的油污和雜物，檢查模具的磨損情況等。對于磨損嚴重的模具，應及時更換，以確保折彎質量。
液壓系統
- 液壓系統是型材折彎機的動力源，其性能直接影響設備的工作效率和穩定性。
- 使用液壓系統前，應檢查液壓油的液位和質量，確保液壓油符合設備要求。同時，檢查液壓管路是否有泄漏，如有泄漏，應及時處理。
- 操作液壓系統時，應按照設備操作規程操作，避免操作不當造成液壓系統損壞。
- 定期維護液壓系統，例如更換液壓油、清洗液壓濾清器等。同時，注意檢查液壓系統的密封件。如有損壞，應及時更換，防止液壓泄漏。
控制系統
- 控制系統是型材彎曲機的核心部件，其性能直接影響設備的自動化程度和操作精度。
- 使用控制系統前，應熟悉設備的操作界面和控制流程，確保設備能夠正確操作。同時，應檢查控制系統的連接線路是否正常。如有松動或損壞，應及時處理。
- 操作控制系統時，應遵循設備操作規程，避免因操作不當而損壞控制系統。例如，設置彎曲參數時，應根據型材的規格和彎曲要求合理設置，避免參數設置過大或過小影響彎曲質量。
- 定期維護控制系統，例如更新控制系統軟件、檢查控制系統的硬件設備等。同時，注意備份控制系統的數據，防止數據丟失。
傳動系統
- 傳動系統是型材彎曲機的重要組成部分，其性能直接影響設備的工作效率和穩定性。
- 使用傳動系統前，應檢查傳動部件的潤滑情況，確保潤滑良好。同時，應檢查傳動帶或鏈條的張緊度是否合適，如有松動，應及時調整。
- 操作傳動系統時，應按照設備操作規程操作，避免操作不當造成傳動系統損壞。例如，啟動設備前，應將傳動系統調整至空擋位置，然后逐漸加載，避免傳動沖擊。
- 定期維護傳動系統，例如更換傳動部件的潤滑油、檢查傳動帶或鏈條的磨損情況等。對于磨損嚴重的傳動部件，應及時更換，以確保設備正常運行。
Performance and function of each component of the profile bending machine
The fuselage workbench
- The fuselage workbench is the main structure of the profile bending machine and should have sufficient strength and rigidity to ensure the stability of the equipment during operation.
- Regularly check the connection parts of the fuselage to ensure that fasteners such as bolts and nuts are reliably tightened to prevent loosening from affecting the accuracy and safety of the equipment.
Bending mold
- The bending mold is a key component of the profile bending machine, and its quality and precision directly affect the quality of the bent profile.
- Choose the right bending die according to different profile specifications and bending requirements. The size and shape of the die should match the profile to ensure the bending effect.
- When installing the bending die, ensure that the installation position of the die is accurate and the fastening is reliable. At the same time, pay attention to the gap adjustment of the die to avoid problems such as uneven deformation of the profile during the bending process.
- Regularly inspect and maintain the bending die, such as cleaning the oil and debris on the surface of the die, checking the wear of the die, etc. For severely worn dies, they should be replaced in time to ensure the bending quality.
Hydraulic system
- The hydraulic system is the power source of the profile bending machine, and its performance directly affects the working efficiency and stability of the equipment.
- Before using the hydraulic system, check the level and quality of the hydraulic oil to ensure that the hydraulic oil meets the equipment requirements. At the same time, check whether the hydraulic pipeline has leakage, and if there is leakage, it should be handled in time.
- When operating the hydraulic system, operate in accordance with the equipment operating procedures to avoid damage to the hydraulic system due to improper operation.
- Regularly maintain the hydraulic system, such as replacing hydraulic oil, cleaning hydraulic filters, etc. At the same time, pay attention to check the seals of the hydraulic system. If damaged, they should be replaced in time to prevent hydraulic leakage.
Control system
- The control system is the core component of the profile bending machine, and its performance directly affects the degree of automation and operating accuracy of the equipment.
- Before using the control system, you should be familiar with the operation interface and control process of the equipment to ensure that the equipment can be operated correctly. At the same time, check whether the connection line of the control system is normal. If it is loose or damaged, it should be handled in time.
- When operating the control system, follow the equipment operating procedures to avoid damage to the control system due to improper operation. For example, when setting the bending parameters, they should be reasonably set according to the specifications and bending requirements of the profile to avoid setting too large or too small parameters to affect the bending quality.
- Regularly maintain the control system, such as updating the control system software, checking the hardware equipment of the control system, etc. At the same time, pay attention to backing up the data of the control system to prevent data loss.
Transmission system
- The transmission system is an important part of the profile bending machine, and its performance directly affects the working efficiency and stability of the equipment.
- Before using the transmission system, check the lubrication of the transmission parts to ensure good lubrication. At the same time, check whether the tension of the transmission belt or chain is appropriate. If there is any looseness, adjust it in time.
- When operating the transmission system, operate it in accordance with the equipment operating procedures to avoid damage to the transmission system due to improper operation. For example, before starting the equipment, the transmission system should be adjusted to the neutral position, and then gradually loaded to avoid transmission shock.
- Regularly maintain the transmission system, such as replacing the lubricating oil of the transmission parts, checking the wear of the transmission belt or chain, etc. For transmission parts with severe wear, they should be replaced in time to ensure the normal operation of the equipment.
結論
操作型材彎曲機時，需要根據生產需求選擇合適的型材。由于型材的規格和材質不同，其彎曲性能會有所不同。因此，在選擇型材時，要充分考慮其彎曲半徑、角度等參數，以保證生產出的產品符合質量要求。
Conclusion
When operating the profile bending machine, it is necessary to select the appropriate profile according to production needs. Due to the different specifications and materials of profiles, their bending performance will be different. Therefore, when selecting profiles, it is necessary to fully consider its bending radius, angle and other parameters to ensure that the products produced meet the quality requirements.
